Valve
A surface that runs 390 K by day and 100 K by night has a thermal problem no coating solves: whatever you do to shed the day's heat also sheds the night's, and whatever holds the night's heat traps the day's. In the declared always-open control, the surface is a net absorber over the cycle. The fix has to be a valve — open one way, shut the other, on a schedule — with no one there to retune it.
Selenoform Valve computes that schedule as an exact integer channel state: two protected channels on the cooling branch and zero protected channels on the heating branch. The closed state still has declared residual analog transmission of 1/15; zero is the protected-channel count, not a claim of perfect insulation. A thermochromic VO2/Morin-class layer is a candidate physical realization, not demonstrated hardware.
What this is, precisely: a hysteretic scheduled-state calculation against a declared thermal readout. It is not a passive steady-state two-terminal blackbody diode — that object is forbidden here by a reciprocity result the paper proves rather than dodges. The lunation figures are design-model outputs; hardware qualification, contact losses, lifetime, and environmental testing are outside the claim.
- The null is exact, and it is checked to 10−14. At net flux 0 or π the circulation vanishes for every tested coupling, band, and geometry — worst residual 4.0×10−14 all the way through N = 106. A nonzero null reading flags numerical error, assembly error, or unmodelled symmetry breaking and must be resolved before the effect is accepted.
- Linear in the site count, at a million sites. The ring is tridiagonal plus a rank-two corner, so a banded solve with an exact rank-two correction returns the required blocks in O(N) time and O(N) storage. At N = 106 the banded calculation takes 4.8 s; the dense complex Green matrix alone would be 14.9 TB before factorization. Dense, sparse, spectral and banded agree to 1.55×10−13.

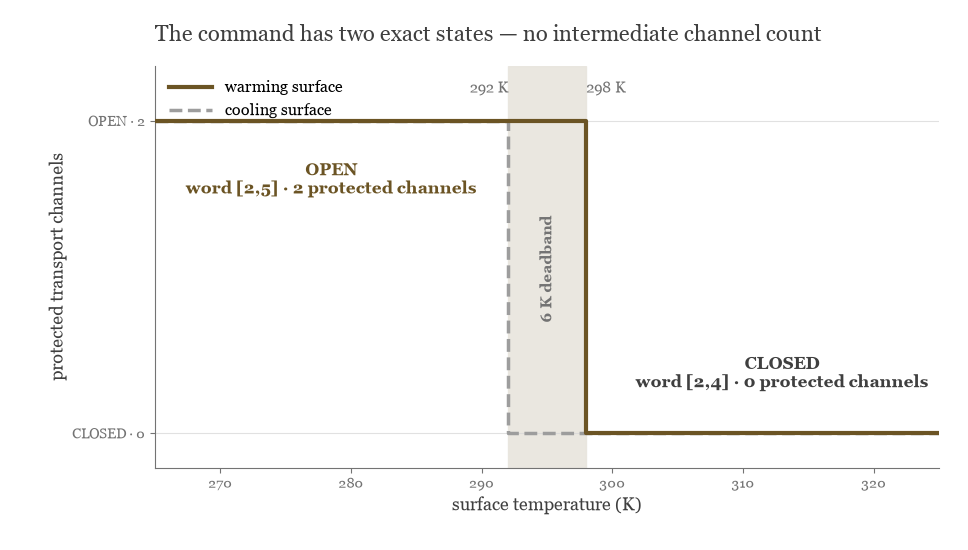

- The command has no fractional channel state. Word [2,5] selects two protected channels; word [2,4] selects zero. Around the declared 295 K setpoint, warming closes at 298 K and cooling reopens at 292 K. The 6 K separation is the hysteresis ansatz; the 2/0 channel count is the exact transport law.
- Staging is graded by an integer. Co-phased stages compose multiplicatively; over n = 2…8 the contrast follows tanh[(κn − c)/2] with R2 = 0.99994, giving an integer sizing rule for a target leakage. The exponent is the integer; κ is a measured rate, not an exact constant.

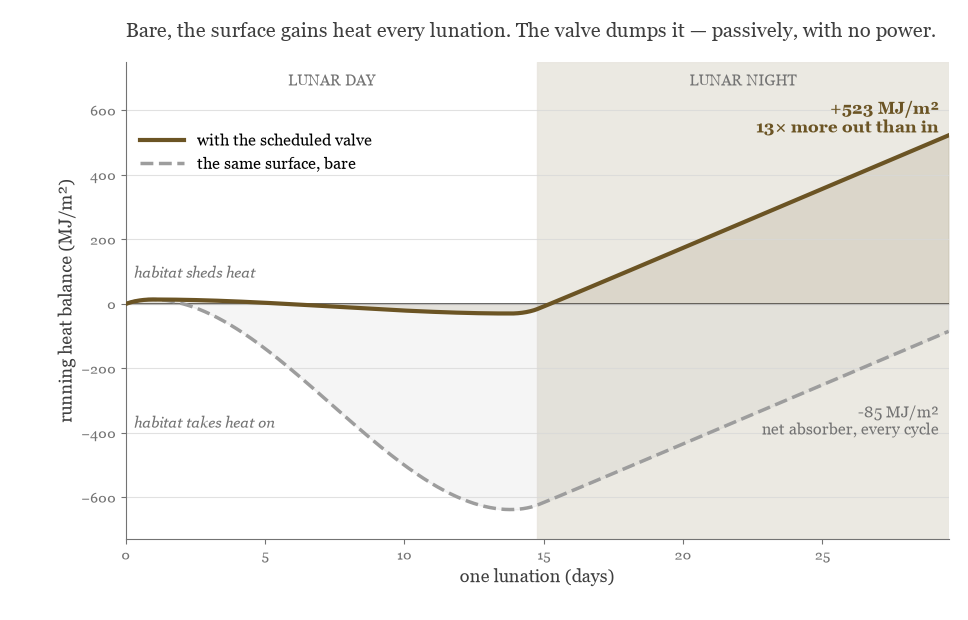

- Net absorber becomes net radiator. Over one lunation with blocking contrast 15, the integrated model gives Qout/Qin = 13.0 against 0.87 for the same surface without the valve — the cycle crosses break-even and stays there.
The measured walls and the scheduled device
| Result | What was established | The number |
|---|---|---|
| Time-reversal null | net flux 0 or π gives zero circulation for every tested coupling, band and geometry, through N = 106 | worst residual 4.0×10−14 |
| Solver agreement | banded, dense-LU and sparse-SuperLU on the disordered case; dense, sparse, spectral and banded on the common range | 3.82×10−17 · 1.55×10−13 |
| Independent quadrature | adaptive quadrature run separately against the integrated-asymmetry statistic | 5.2732×10−3, err 9.3×10−16 |
| Linear ring solve | banded solve plus exact rank-two correction at one million sites, against the dense formulation's footprint | 4.8 s vs 14.9 TB |
| Exact command state | word [2,5] on the open branch and word [2,4] on the closed branch; 6 K declared hysteresis around 295 K | 2 or 0 protected channels |
| Staged contrast | co-phased stages compose multiplicatively over n = 2…8; integer sizing rule for a target leakage | R2 0.99994 |
| Lunation | scheduled hysteretic valve on the declared 390 K / 100 K surface at blocking contrast 15 | 13.0 vs 0.87 always-open |
Valve steel thread — a driven quarter-flux three-port ring on the standard coherent-transport formulation, an integer-staged cascade, and a scheduled lunar-cycle valve. The second, energy-integrated wall is conditional: it holds on the particle–hole-symmetric family and fails when that symmetry is broken. The lunar case is a hysteretic word-state calculation, not a passive steady-state two-terminal blackbody diode. Design-model outputs; hardware qualification, contact losses, lifetime and environmental testing remain outside the claim.
How — the wall, the linear solve, the schedule
- Establish the null before claiming the effect. Time reversal forces zero circulation at net flux 0 or π. Measuring that null to 10−14 at a million sites is what licenses the non-zero readings; generic quarter flux breaks the symmetry and reverses the circulation when the flux sign reverses. the exact wall · residual 4.0e−14
- Exploit the ring's shape, not its size. Tridiagonal plus a rank-two corner means a banded factorization and an exact rank-two correction return the needed blocks in linear time and storage — an algorithmic scale demonstration, not a projected dense runtime. O(N) time · O(N) storage
- Size the cascade with an integer. Stage contrast composes multiplicatively, so the leakage falls geometrically in the stage count and the required number of stages is a ceiling, not a tuning exercise. integer grading · stage exponent
- Schedule the states against the cycle. Two channels open on the cooling branch, zero protected channels on the heating branch with residual analog transmission 1/15, a 6 K deadband, and a candidate thermochromic switching layer — a hysteretic word-state calculation integrated over one lunation. Q_out/Q_in = 13.0 vs 0.87 always-open
